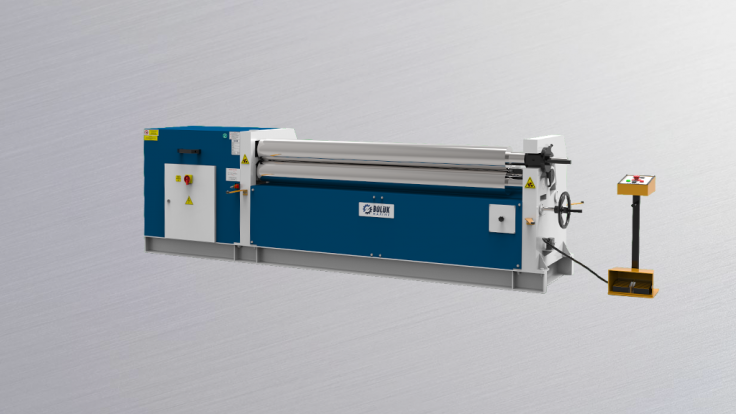

BRM-S 3 Rolls Motorised Plate Rolling Machine
Very suitable 3 rolls plate rolling machine for light and medium plates, aluminyum or stainless steel.
Specifications & Standart Features
- Overload Protection
- Easy Operation With Mobile Control Panel With Push Buttons
- Welded Steel Frame
- Built According To EU Safety Directives And Has CE Mark
- Manual Drop – End for Easy Removal Of Finished Ferrule
- Hot Rolled SAE 1050 (CK-45) Steel Rolls
- Central Lubrication System
- Precision Bending With Breked Motor
- Conical Bending Device
- Precision Bending With Up And Down Adjustment Of Motorised Back Roll
- On 170 – 220 mm Roll Models Two Rolls Powered By Planetary Reducer And On Others With A Single Chain And Belt Driven Helical Type Gearbox And Gear System
Optional Features
- Induction Harened Rolls (HRC58-60)
- Wire Grooves At The End Of The Rolls
- Digital Read – Out For Rear (Back) Roll
- Motorised Bottom Roll
Technical Specifications
| TYPE | Useful Length | Prebending | Bending Capacity | Roll Diameters | Min. Bending | Motor Power | Back Roll Motor | Length | Width | Height | Weight |
| mm | mm | mm | Ø mm | mm | kW | kW | mm | mm | mm | kg | |
| BRM-S 1550 x 130 | 1550 | 4/5 | 5/6 | 130 | 195 | 2,2 | 1,1 | 3250 | 650 | 1020 | 1400 |
| BRM-S 1550 x 150 | 1550 | 5/6 | 6/7 | 150 | 225 | 2,2 | 1,1 | 3250 | 680 | 1040 | 1650 |
| BRM-S 1550 x 170 | 1550 | 6/7 | 7/8 | 170 | 255 | 4 | 1,1 | 3350 | 720 | 1050 | 1850 |
| BRM-S 1550 x 190 | 1550 | 7/8 | 8/9 | 190 | 285 | 4 | 1,5 | 3700 | 950 | 1300 | 2750 |
| BRM-S 2050 x 130 | 2050 | 2/3 | 3/4 | 130 | 195 | 2,2 | 1,1 | 3750 | 650 | 1020 | 1600 |
| BRM-S 2050 x 150 | 2050 | 3/4 | 4/5 | 150 | 225 | 2,2 | 1,1 | 3750 | 680 | 1040 | 1885 |
| BRM-S 2050 x 170 | 2050 | 4/5 | 5/6 | 170 | 255 | 4 | 1,1 | 3850 | 720 | 1050 | 2100 |
| BRM-S 2050 x 190 | 2050 | 5/6 | 6/7 | 190 | 285 | 4 | 1,5 | 4200 | 950 | 1300 | 3100 |
| BRM-S 2550 x 190 | 2550 | 4/5 | 5/6 | 190 | 285 | 4 | 1,5 | 4700 | 950 | 1300 | 3400 |
| BRM-S 2550 x 220 | 2550 | 5/6 | 6/7 | 220 | 330 | 5,5 | 2,2 | 4700 | 1150 | 1400 | 5000 |
| BRM-S 3050 x 160 | 3050 | 1,5/2 | 2/3 | 160 | 240 | 4 | 1,1 | 4850 | 720 | 1050 | 2650 |
| BRM-S 3050 x 190 | 3050 | 2/3 | 3/4 | 190 | 285 | 4 | 1,5 | 5200 | 950 | 1300 | 3750 |
| BRM-S 3050 x 200 | 3050 | 3/4 | 4/5 | 200 | 300 | 4 | 1,5 | 5200 | 950 | 1300 | 4000 |
| BRM-S 3050 x 220 | 3050 | 4/5 | 5/6 | 220 | 330 | 5,5 | 2,2 | 5200 | 1150 | 1400 | 6000 |
