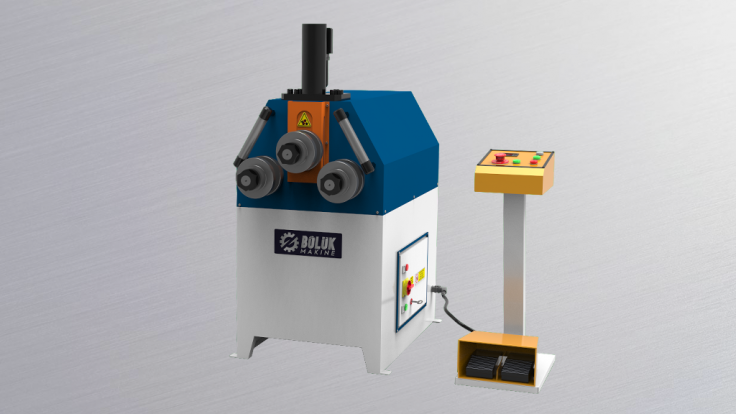

BPK 50 H Hydraulic Pipe & Profile Bending Machine
Specifications & Standart Features
- Steel Frame
- 3 Rolls Powered
- Shafts And Rolls Are Hardened And Grinded
- Top Roll Moves Hydraulically
- Lateral Guide Rolls
- Vertical And Horizontal Working System
- It Is Movable From Left To Right With Foot Pedal
- Foot Pedal With Digital Read Out
- With 1 Set Of Standard Crimping Ball Sets
- User’s Manual
- Built According To EC Safety Directives And Has CE
Technical Specifications
| TYPE | Motor Power | Hydraulic Motor Power | Shafts | Roll Diameters | Hydraulic Power | Length | Width | Height | Weight |
| kW | kW | Ø mm | Ø mm | ton | mm | mm | mm | kg | |
| BPK 50 H | 1.5 | 1.1 | 50 | 152 | 10 | 800 | 650 | 1500 | 550 |
