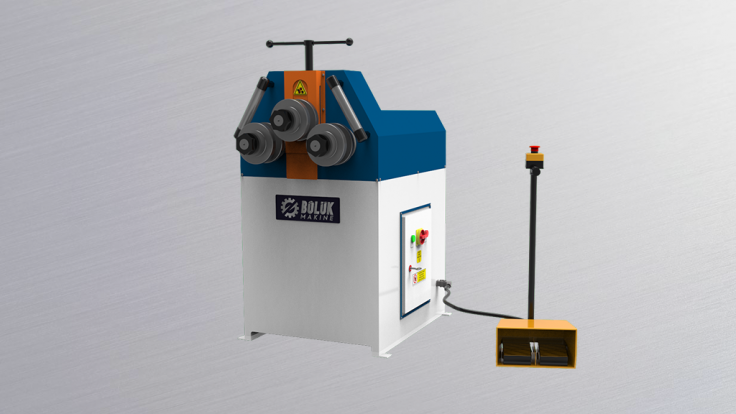

BPK 45 Pipe & Profile Bending Machine
Specifications & Standart Features
- Steel Frame
- Two Rolls Direct Driven By A Gear System
- Rolls Are Hardened
- Rolls Shafts Are Special Steel Material Hardened And Ground
- Roll Shafts Housed By Bearings
- Standard Rolls
- Guide Rolls
- Horizontal And Vertical Working Position
- Built According To EC Safety Directives And Has CE
Optional Features
- Pipe Bending Rolls
- Tube Bending Rolls
- Profile Bending Rolls
- Angle Bending Rolls
- Digital Read – Out
- Special Lateral Angle Guides
- Special Bar Twist Attachment
- C&S Forming Attachment
Technical Specifications
| TYPE | Motor Power | Shafts | Roll Diameters | Length | Width | Height | Weight |
| kW | Ø mm | Ø mm | mm | mm | mm | kg | |
| BPK 45 | 1.5 | 50 | 155 | 750 | 1000 | 1400 | 400 |
