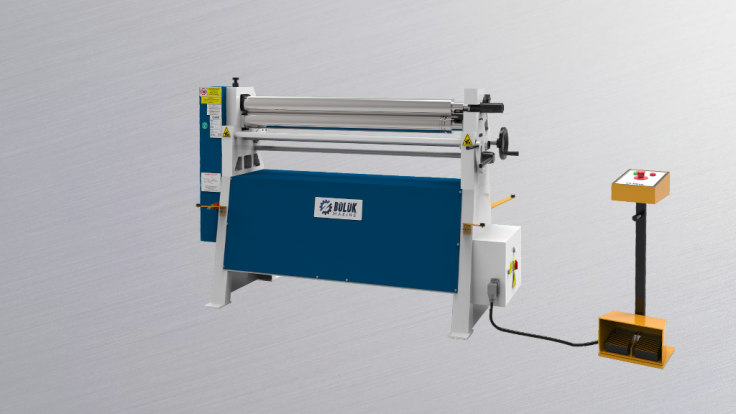

BM 3 Rolls Motorised Plate Rolling Machine
Very suitable 3 rolls plate rolling machine for light and medium plates, aluminyum or stainless steel.
Specifications & Standart Features
- Ductile Iron Body
- Easy Operation With Mobile Control Panel With Push Buttons
- Cone Bending Device
- Manual Drop – End For Easy Removal Of Finished Ferrule
- Built According To EC Safety Directives And Has CE Mark
- Main Motor With Brake System
- Wire Bending Can Be Done With Wire Channels In Balls
- Top And Bottom Rolls Powered By A Single Gearbox And Gear System
- SAE 1050 Quality Certificated Steel Rolls With High Tensile Strength
- Hand Wheel For Up And Down Motions Of Lower And Back Rolls
Optional Features
- Induction Hardened Rolls
- Motorised Back Roll Adjustment
- Digital Display For Back Roll
Technical Specifications
| TYPE | Usefull Length | Bending Capacity | Roll Diameters | Roll Speed | Motor Power | Wire Grooves | Lenght | Width | Height | Weight |
| mm | mm | Ø mm | m/min. | kW | mm | mm | mm | mm | kg | |
| BM 1050 x 90 | 1050 | 3.0 | 90 | 6 | 1.1 | 4 / 6 / 10 | 1630 | 700 | 1200 | 480 |
| BM 1270 x 90 | 1270 | 2.5 | 90 | 6 | 1.1 | 4 / 6 / 10 | 1850 | 700 | 1200 | 520 |
| BM 1550 x 90 | 1550 | 2.0 | 90 | 6 | 1.5 | 4 / 6 / 10 | 2130 | 700 | 1200 | 580 |
| BM 2050 x 95 | 2050 | 1.5 | 95 | 6 | 1.5 | 4 / 6 / 10 | 2630 | 700 | 1200 | 715 |
| BM 1050 x 75 | 1050 | 2.0 | 75 | 6 | 1.1 | 4 / 6 / 10 | 1610 | 700 | 1160 | 385 |
| BM 1270 x 75 | 1270 | 1.5 | 75 | 6 | 1.1 | 4 / 6 / 10 | 1830 | 700 | 1160 | 400 |
| BM 1550 x 75 | 1550 | 1.2 | 75 | 6 | 1.1 | 4 / 6 / 10 | 2110 | 700 | 1160 | 430 |
| BM 2050 x 75 | 2050 | 1.0 | 75 | 6 | 1.1 | 4 / 6 / 10 | 2610 | 700 | 1160 | 590 |
