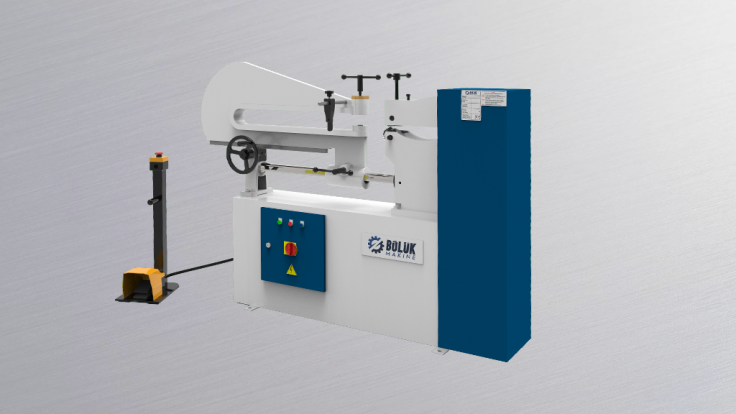

BDK 2 Motorised Circular Cutting Machine
Specifications & Standart Features
- Steel Welded Construction Frame
- Special Steel Blades
- Blades Assembled İn Bronze Bushing
- Gearbox Motor With Brake System
- Mobile Control Panel
- Inside Diameter Cutting System
- Built According to CE Safety Directives
- User’s Manual
Optional Features
- Pneumatic Sheet Centering
Technical Specifications
| TYPE | Min. Cutting Diameter | Max. Cutting Diameter | Cutting Capacity | Cutting Speed | Blade Metarial | Motor Power | Hump Depth | Throat Depth | Length | Width | Height | Weight |
| Ø mm | Ø mm | mm | m/min. | K | kW | mm | mm | mm | mm | mm | kg | |
| BDK-2 | 120 | 1000 | 2 | 7.5 | 2379 | 1.1 | 700 | 280 | 1400 | 400 | 1300 | 350 |
