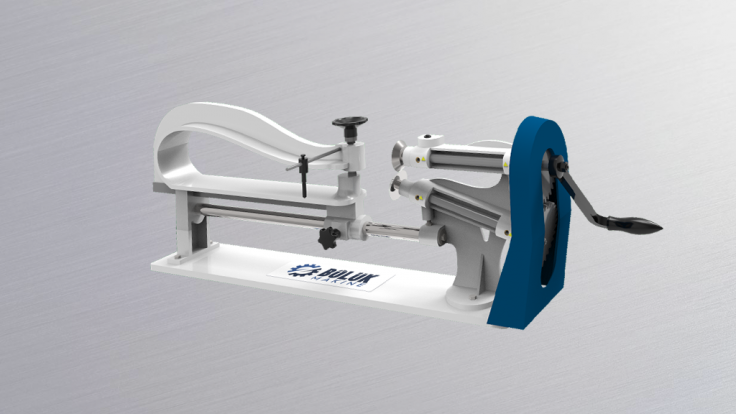

BDK 1 Manual Circular Sheet Cutter Shear
Specifications & Standart Features
- Rigit Cast Frame
- Special Steel Blades
- Blades Assembled İn Castiron Bushings
- Built According To Ce Safety Directives
- User’s Manual
Technical Specifications
| TYPE | Min. Cutting Diameter | Max. Cutting Diameter | Cutting Capacity | Blade Material | Hump Depth | Throat Dept | Length | Width | Height | Weight |
| Ø mm | Ø mm | mm | K | mm | mm | mm | mm | mm | kg | |
| BDK-1 | 150 | 1000 | 1 | 2379 | 600 | 200 | 1200 | 200 | 450 | 60 |
